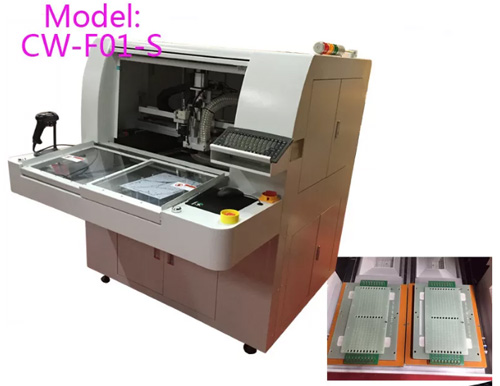

PCB Separator Machine for Singulation, Equipped with Anti-Static Ionizing Fan

Features

• High-Precision Motion System
  The CW-F01-S PCB Separator adopts X, Y, Z servo motors, a ball screw, and linear guide rails to ensure smooth and precise machine operation.

• Exceptional Accuracy
  The machine offers a movement accuracy of less than 0.10mm and routing accuracy of less than 0.02mm, ideal for high-precision applications.

• Rotary Dual Workstation Design
  Equipped with a rotary double workstation, the machine supports continuous operation, significantly improving production efficiency.

• High-Resolution CCD Camera
  Integrated with a high-resolution CCD camera, the machine supports direct-teach programming using a cross-cursor system, making setup quick and easy.

• Versatile Cutting Capability
  The software can execute commands for points, lines, arcs, and circles to accommodate a wide range of panel shapes.

• Mark Positioning Function
  Automatically corrects coordinate offsets when the PCB position changes, ensuring consistent cutting accuracy.

• User-Friendly Software
  Built on an industrial PC running a Windows system with fully self-developed English-language software for intuitive operation and easy programming.

• High-Quality Routing Spindle
  Equipped with an air-cooled, long-service-life routing spindle for reliable and stable performance.

• External Silent Vacuum Cleaner
  An external silent vacuum system ensures a clean and low-noise working environment.

• Multi-Section Milling Bit Utilization
  Milling bits can be used in 2 or 3 sections by simply adjusting software parameters, greatly extending tool life.

• Anti-Static Ionizing Fan
  Features a built-in anti-static ionizing fan to eliminate static electricity and remove dust during operation.

Specification
