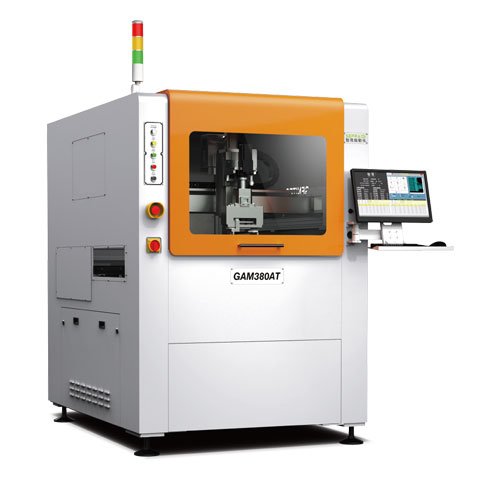

GAM 380AT Gripper In-Line Automatic PCB Bottom Depaneling Machine

●Cutting with gripper, no fixture demand.

●Suitable for PCB the high components on its top.

●Use CCD to do the vision positioning offset and alignment which can ensure the precision in cutting.

●Unloading can be setting between 0-180 degrees on placing in line then connect the equipment behind of it.

●Loading by track; for unloading, there are 3 ways of conveyor, tracking and customized placing board on tray for customer’s selection.

Look no further! The same machines used by world’s top 500companies

More than one thousand well-known enterprises chose Seprays separator and established long-term cooperation.

Send us a direct message now, justsend us a picture of your product andwe’ll be able to recommend the rightproduct for you right away.

Model	GAM380AT
Valid cutting size	500*450mm
Loading method	Track delivery
Unloading method	Conveyor belt delivery or track delivery
Transfer method	The rotatable gripper for taking
Movement direction	Left to right or right to left
Cutting function	Tweening to staight line, L shape, U shape Circle, Arc
PCB specification	Weight≤3kg，edge width≥3mm，thickness 0.8-4mm
Repeat precision	±0.01mm
Cutting precision	±0.1mm
Max moving speed	XY: 1000mm/sec, Z: 800mm/sec
Spindle’s speed	MAX: 60000rpm (Adjustable)
Tool change type	Auto tool change
Cutting speed	1-100mm/s
Broken knife check	Included
Operating system	Windows10
Program teaching method	Intuitive teaching by CCD color image input
Control method	Precision multi-axis control system
XYZ axis driving mode	AC Servo motor
Size of milling tool	0.8-3.0mm
Voltage/Power requirement	AC220V 50/60Hz 4KW Single-phase
Pneumatic pressure requirement	0.6MPa, 160L/min

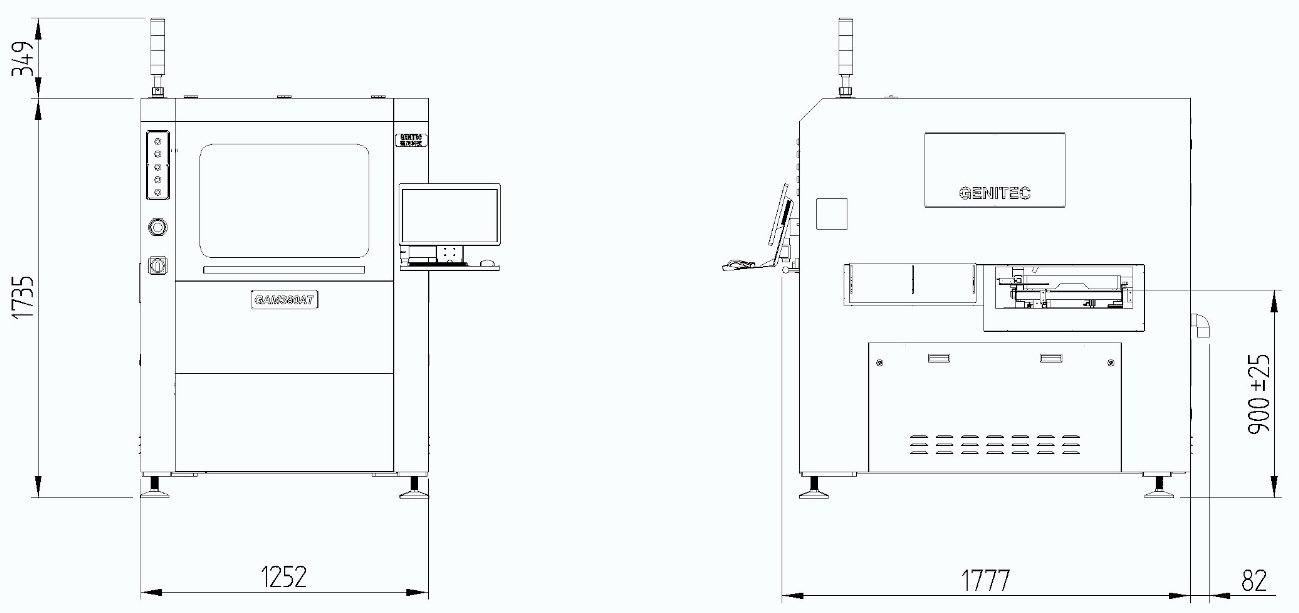

Dimensions(WDH)	125218591735mm
Weight	770kg
Dust collector	TS300L
