Features
●Fully Automated Operation
Supports automatic processes from PCB loading, cutting, to unloading, with multiple configurable solutions available to meet different production requirements.
●CCD Vision Positioning and Alignment
Equipped with a CCD vision system for offset correction and alignment, ensuring high cutting precision.
●High-Speed Spindle with Automatic Tool-Change
Uses a high-speed spindle with an automatic tool-change function to improve efficiency and reduce the risk of PCBA damage caused by static electricity.
●Patented Flexible Cleaning Brush
The patented flexible cleaning brush allows sectional use of the milling tool, helping to extend tool life and reduce replacement frequency.
●Optional Dual-Spindle Models
For higher throughput, dual-spindle models such as GAM320AD, GAM330AD, and GAM340AD are available to meet diverse production needs.
●Customizable Solutions for Various Processes
Offers a wide range of process-adaptable options, ensuring flexibility for different customer applications.
Optional
- Optional clamping module for carrier process
- The height checking module in laser
- Barcode reader
- Milling tool diameter detection
- The customized MES
Look no further! The same machines used by world’s top 500companies
Send us a direct message now, justsend us a picture of your product andwe’ll be able to recommend the rightproduct for you right away.
Specifications

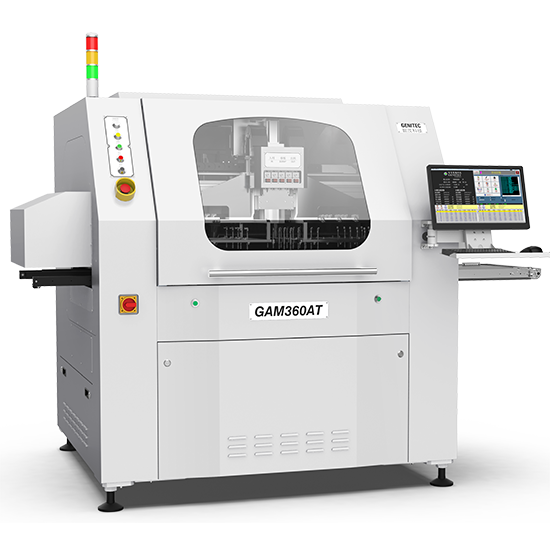

| Model | GAM360AT |
|---|---|
| Valid cutting size | 600*500mm |
| Loading method | Track delivery |
| Unloading method | Belt delivery or track delivery |
| Transfer method | Vacuum nozzle absorption |
| Movement direction | Left to right or right to left |
| Cutting function | Tweening to straight line, L shape, U shape, Circle, Arc |
| Process table | Single table |
| Repeat precision | ±0.01mm |
| Cutting precision | ±0.05mm |
| Max moving speed | XY: 1000mm/sec, Z: 800mm/sec |
| Max moving trip | X: 1040mm, Y: 655mm, Z: 90mm |
| Spindle’s speed | MAX: 60000rpm (Adjustable) |
| Tool change type | Auto tool change |
| Cutting speed | 1-100mm/s (Adjustable) |
| Operating system | Windows 10 |
| Program teaching mode | Intuitive teaching by CCD color image input |
| Program backup | USB data transfer |
| Control method | Precision multi-axis control system |
| XYZ axis driving mode | AC Servo motor |
| Size of milling tool | 0.8-3.0mm |
| Voltage/Power requirement | AC220V 50/60Hz 4KW Single-phase |
| Pneumatic pressure requirement | 0.6MPa, 200L/min |
| Dimensions(W*D*H) | 2309*1606*1717mm |
| Weight | 930kg |
| Collector | TS300L |

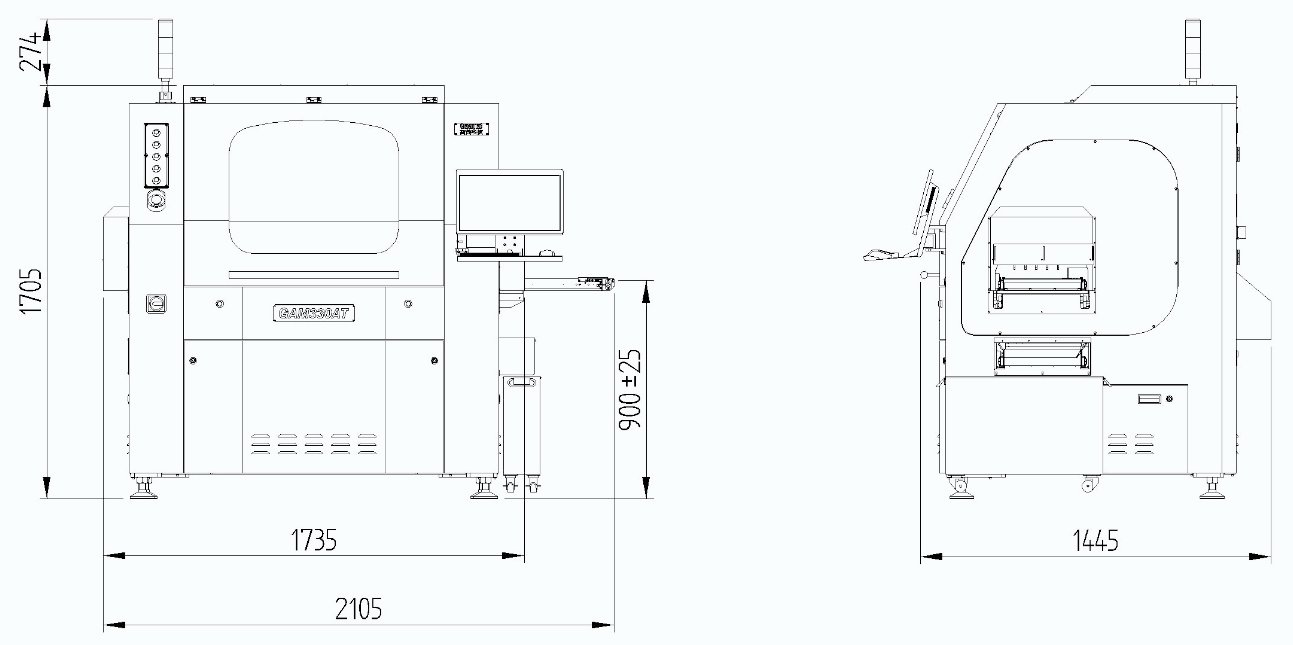

Front View/Side View
